Introduction:

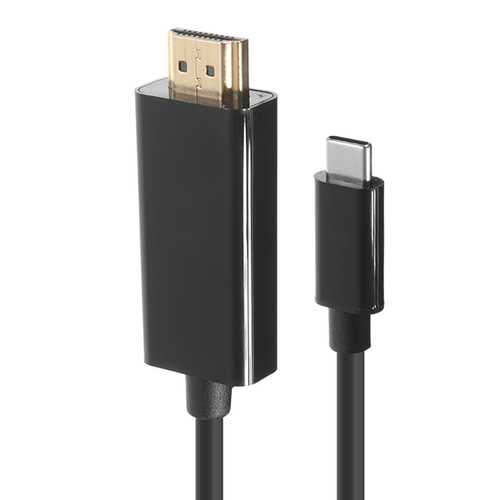

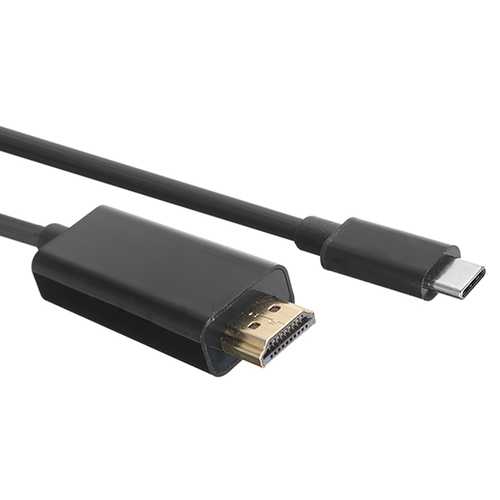

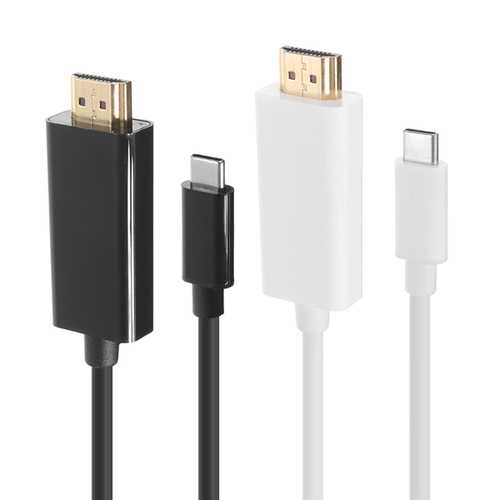

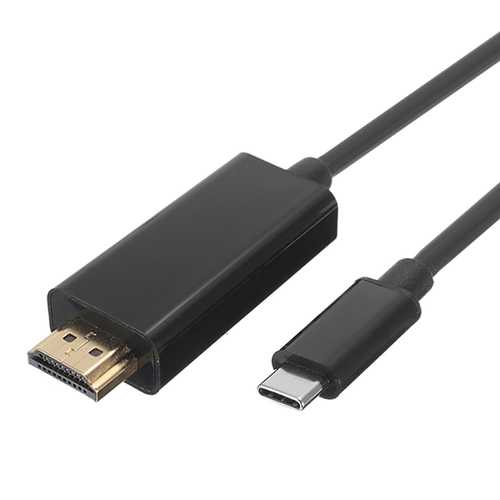

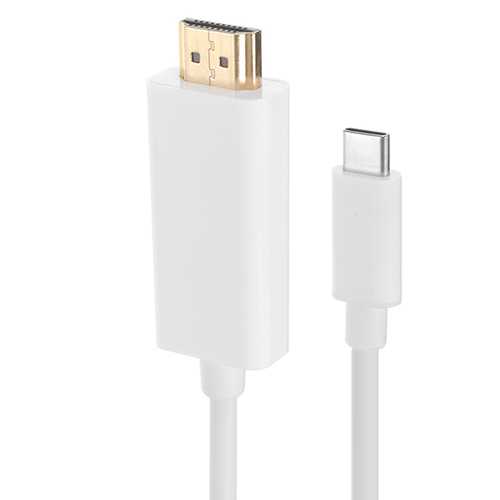

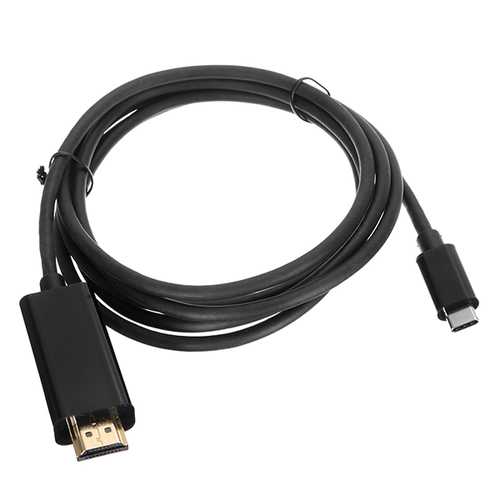

This USB3.1 Type-C to HD Adapter provides high throughput using the USB 3.1 bus and supports the high definition monitors with high resolution and high refresh rate.allows you to connect your desktop PC or laptop's USB port to an extra monitor or TV.
Features:Standard USB3.1 Type-C
Supports USB 3.1 input and HD output
Flexible USB Type-C Switching Support for USB 5G and DisplayPort 1.2 Alt mode
Supports per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2,8/10/12bpc
Supports HD 1.4 and former versions
Supports resolution up to 3840x2600 @60Hz (mirror mode) in DP1.1 (or 1.2) in SST mode.
Supports resolutions as follows:
4Kx2K,@ 24Hz,25Hz,30Hz;
1080P,@24Hz,50Hz,60Hz;
720P,480P,576i,480i,@50Hz and 60Hz
Supports HD audio
Supports bus-powered and self-powered operation
Specifications:
Signal Inputs/Output
Input port:USB3.1 Type-C Male x1
Output port:HDMI Female x1 (HD 1.4)
Operating Temperature:0 ℃ to +45℃
Operating Humidity:10% to 85 % RH (no condensation)
Storage Temperature:-10℃ to +80℃
Storage Humidity:5% to 90 % RH (no condensation)
Power Requirement:USB bus power
External Power Supply:NO
Accessories Adapter:
Size(L-W-H):41.5×37×14.5mm
Cable: 150mm
Remote control:NO
User Manual:English VersionPackage included:1*HD cable
